DESCRIPTION

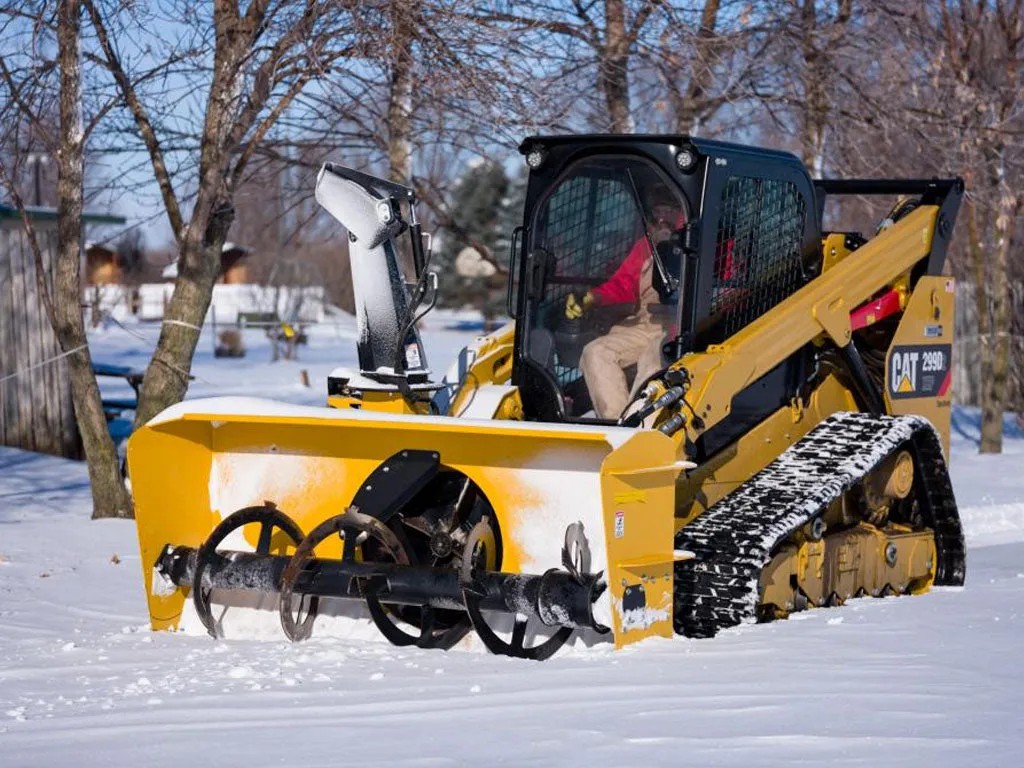

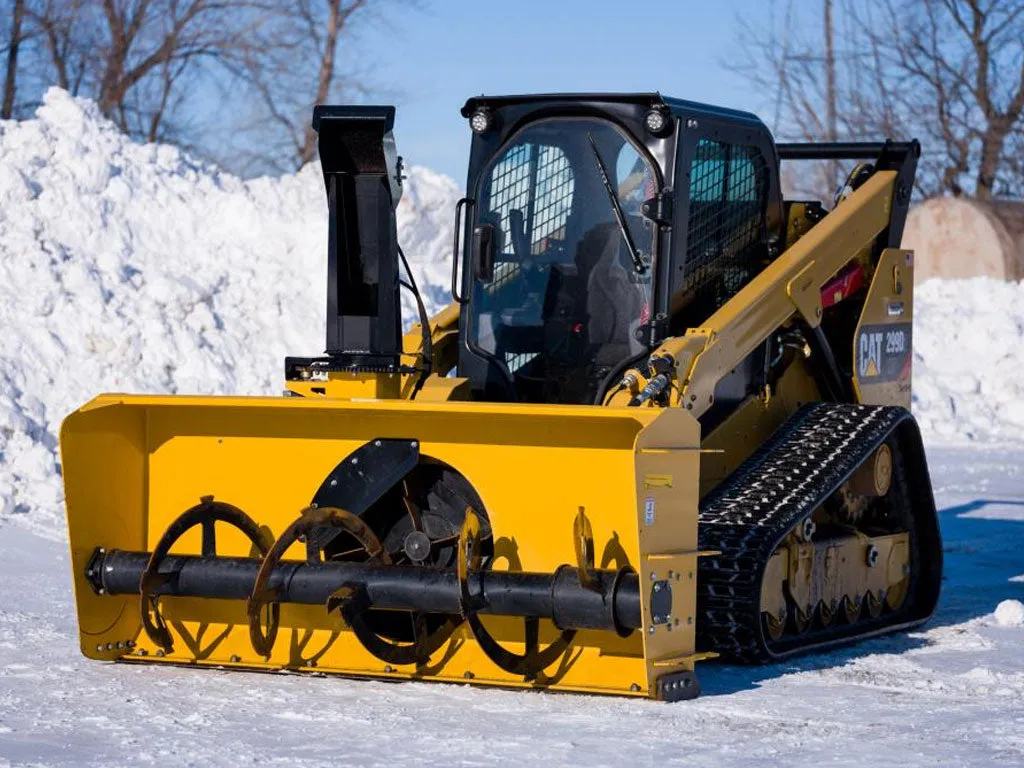

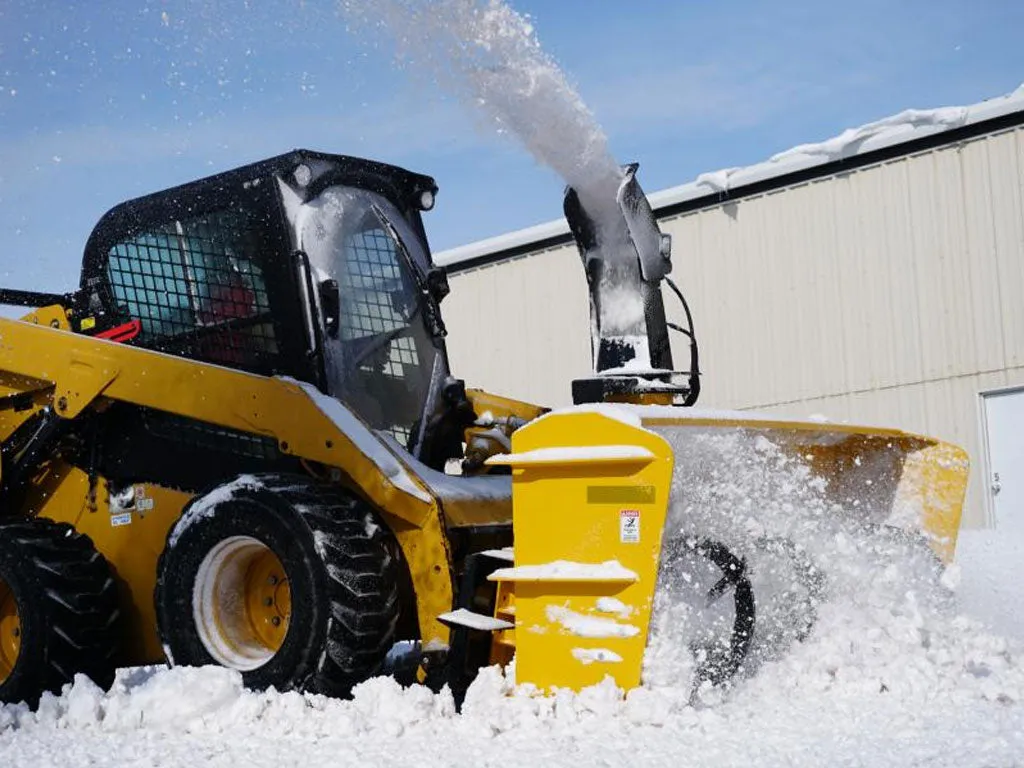

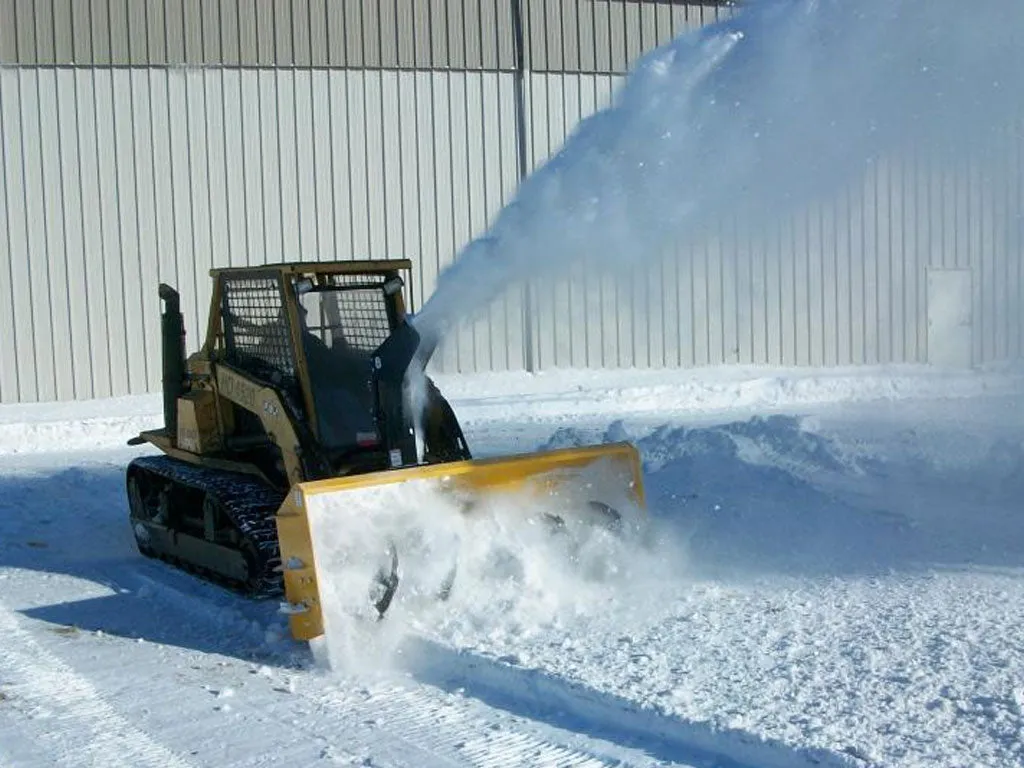

Hitchdoc Skid Steer Snow Blower
Standard Features:
- 100% Hydraulically Powered – All motors including the fan, auger, spout and deflector cylinder are easily controlled from the comfort of your cab
- Long Term Protection – Our design has enclosed the auger motor and included ¼ inch end plates for added protection to your machine and the working parts from the elements
- Bypass Relief System – High pressure bypass relief system eliminates the need for shear pins and will help protect the blower from sudden stops
- Adjustable Depth Guides – Manually change the pin on the skid shoes to control blade height MADE IN USA TIGER TEETH
- Unbreakable Auger – Single auger with 6 inch center tube and 16 inch diameter laced with Tiger Teeth chew through heavy, wet snow or ice without any issues
- High Visibility Finish – With a yellow, powder-coat finish, this snow blower will maintain a sharp, clean appearance season after season
- Overbuilt to Outlast – Made from American steel in the Midwest, this blower is compiled of a 7 gauge fan housing and 10 gauge blower shell
- Replaceable Cutting Edge – Bolt-on, hardened steel cutting edge is easy to remove and replace after a long use history
- Quick-Tach Mounting Plate – A universal mount plate lets you easily attach this blower to most skid steer makes and models
- Continual Improvement – At HitchDoc, we take our products out year after year and push them to the breaking point to maintain our high quality and performance levels
SPECS
MODEL | HDS 72SS | HDS84SS |
FAN | 22", 5 BLADE | 22", 5 BLADE |
FAN DEPTH | 6.5" | 6.5" |
FAN BLADE | 1/4" | 174" |
AUGER DIAMETER | 16" | 16" |
SPOUT OPENING | 7" | 7" |
SPOUT ROTATION | 270 DEGREE | 270 DEGREE |
HOUSING HEIGHT | 32" | 32" |
OVERALL HEIGHT | 67" | 67" |
CUTTING WIDTH | 73.7" | 85.7" |
OVERALL WIDTH | 77.5" | 89.5" |
APPROXIMATE LBS. | 950 | 1050 |
